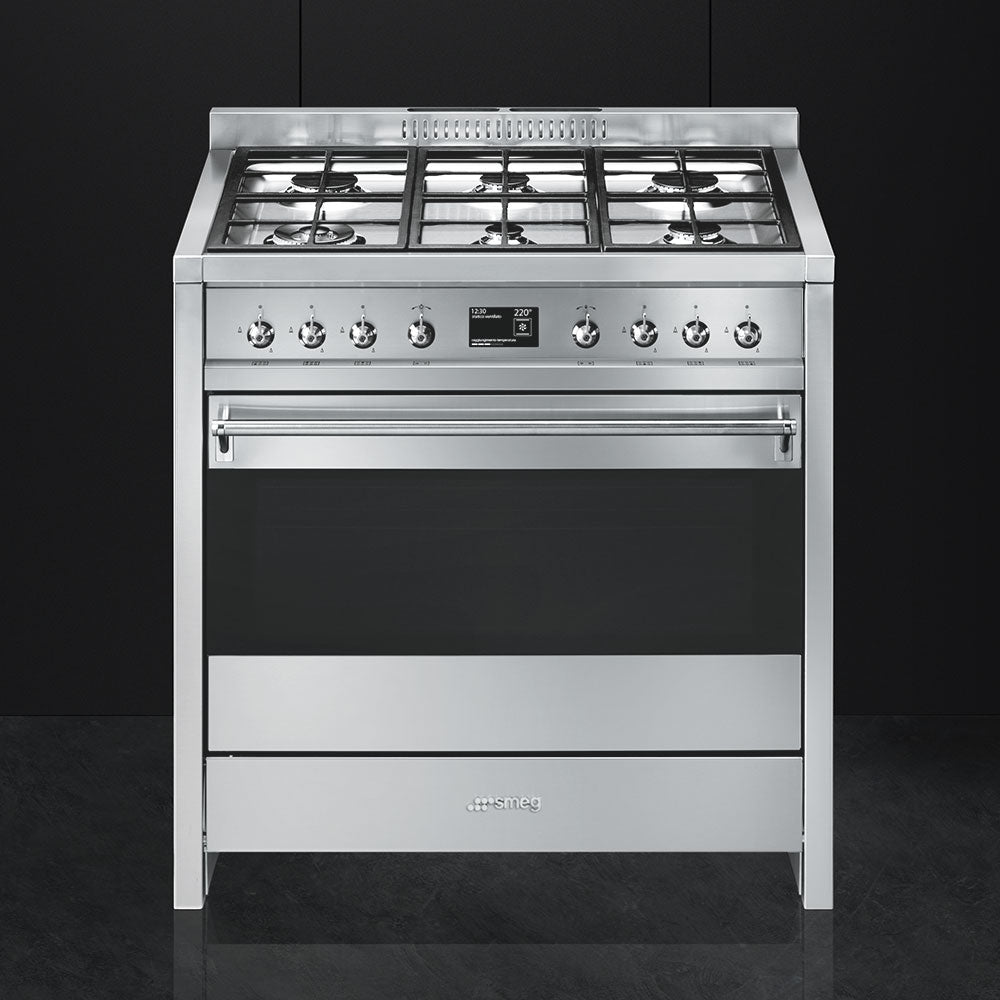

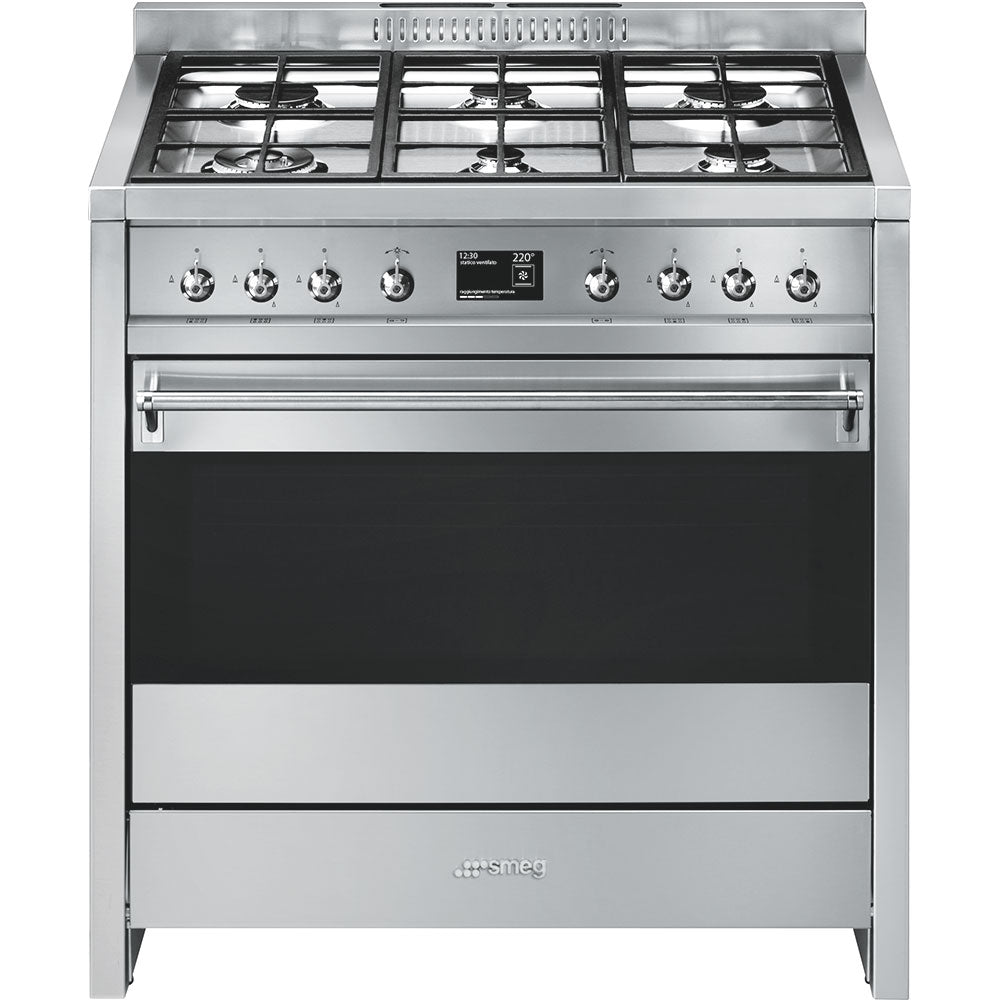

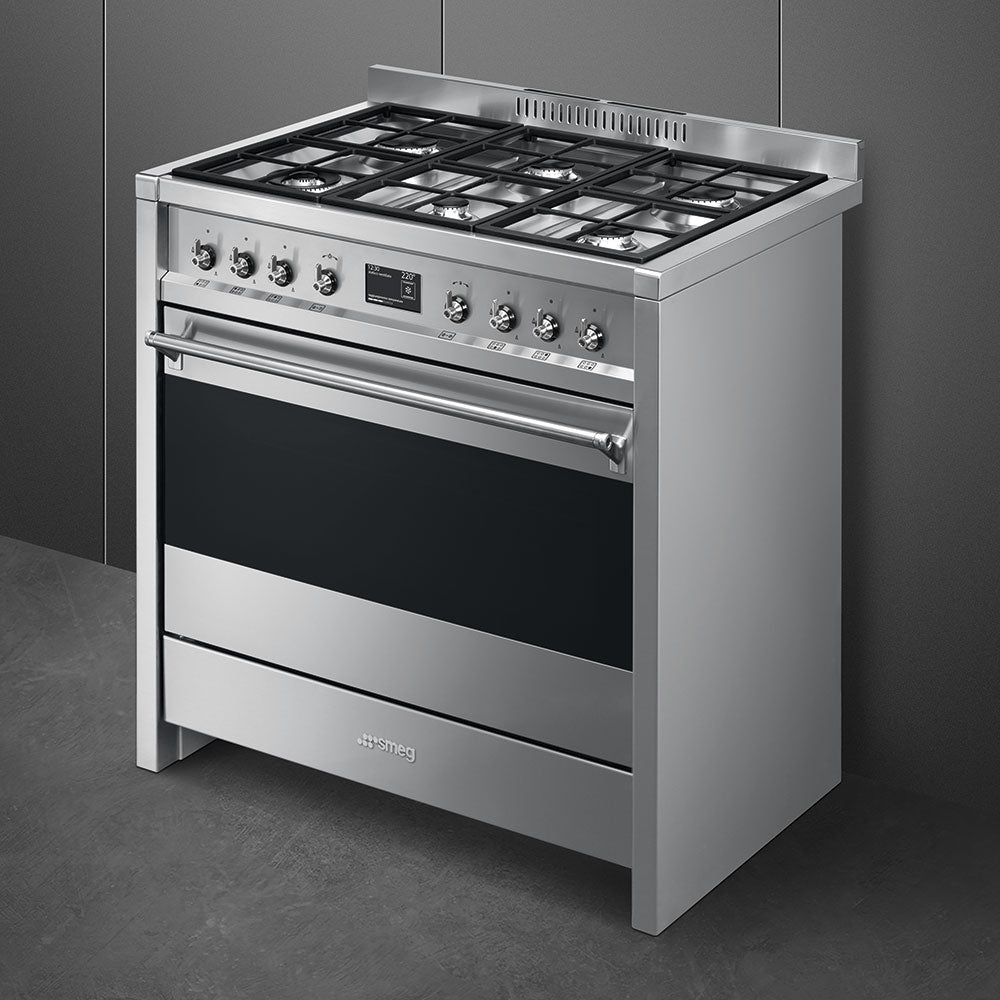

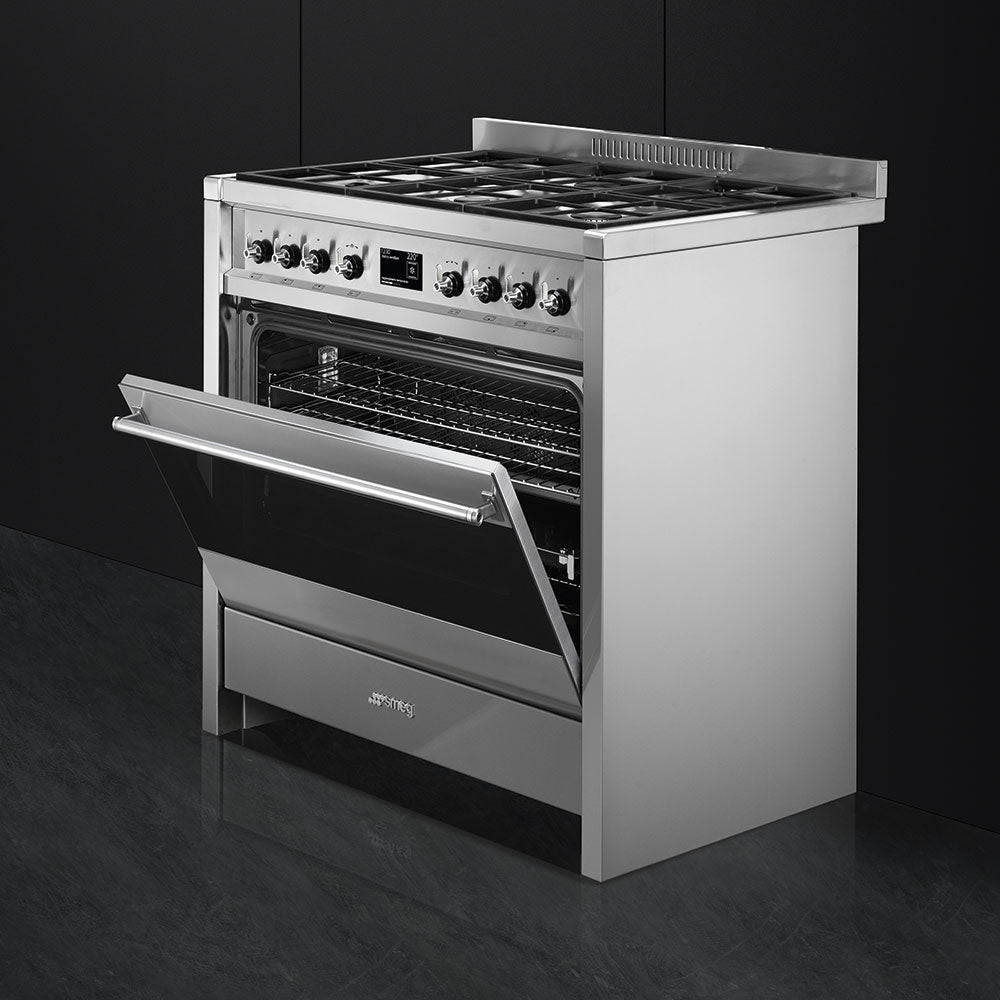

Aragaz Smeg A1-9

TRIPLE FAN TECHNOLOGY

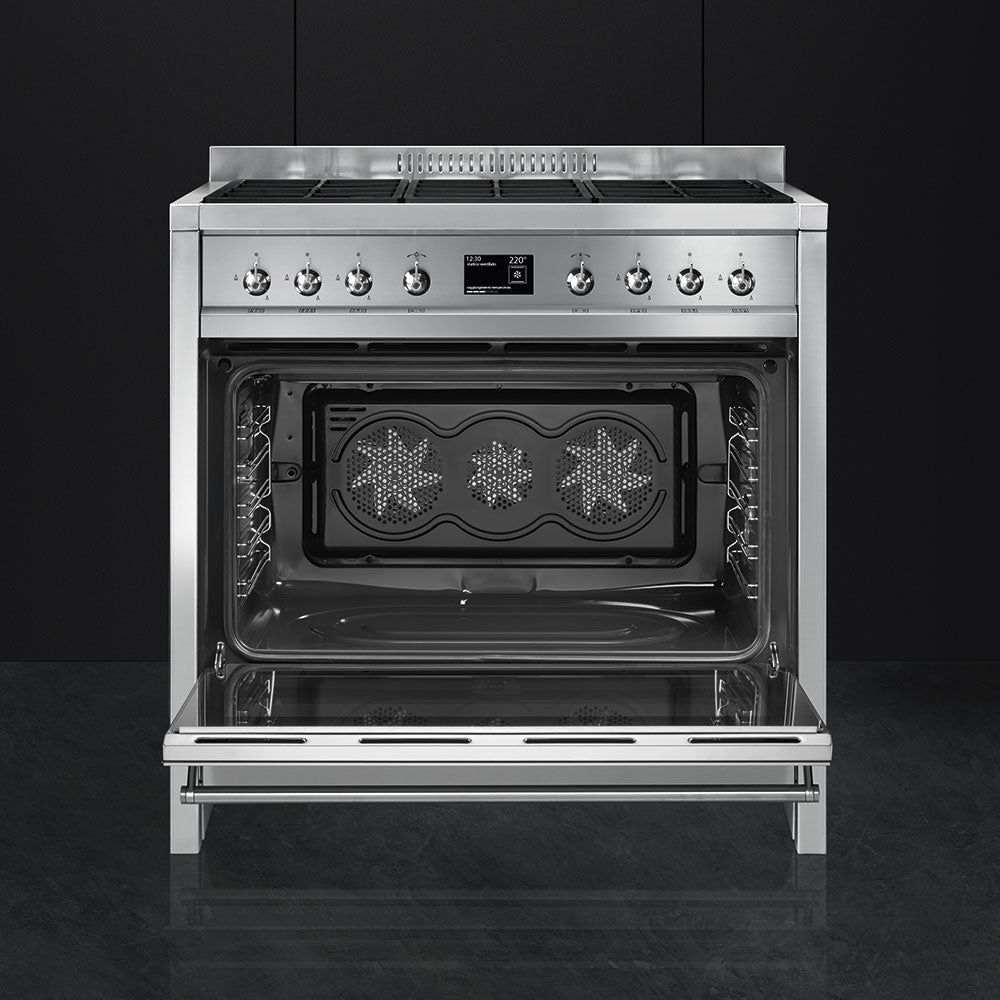

The oven is equipped with an exclusive three-fan system which, combined with the greater power of the motors, allows excellent cooking performance to be achieved. The two large side fans distribute the air around the perimeter of the cavity while the small central one increases ventilation by creating a vertical heat vortex. The temperature is thus uniform allowing you to cook evenly on all five levels, as in professional kitchens.

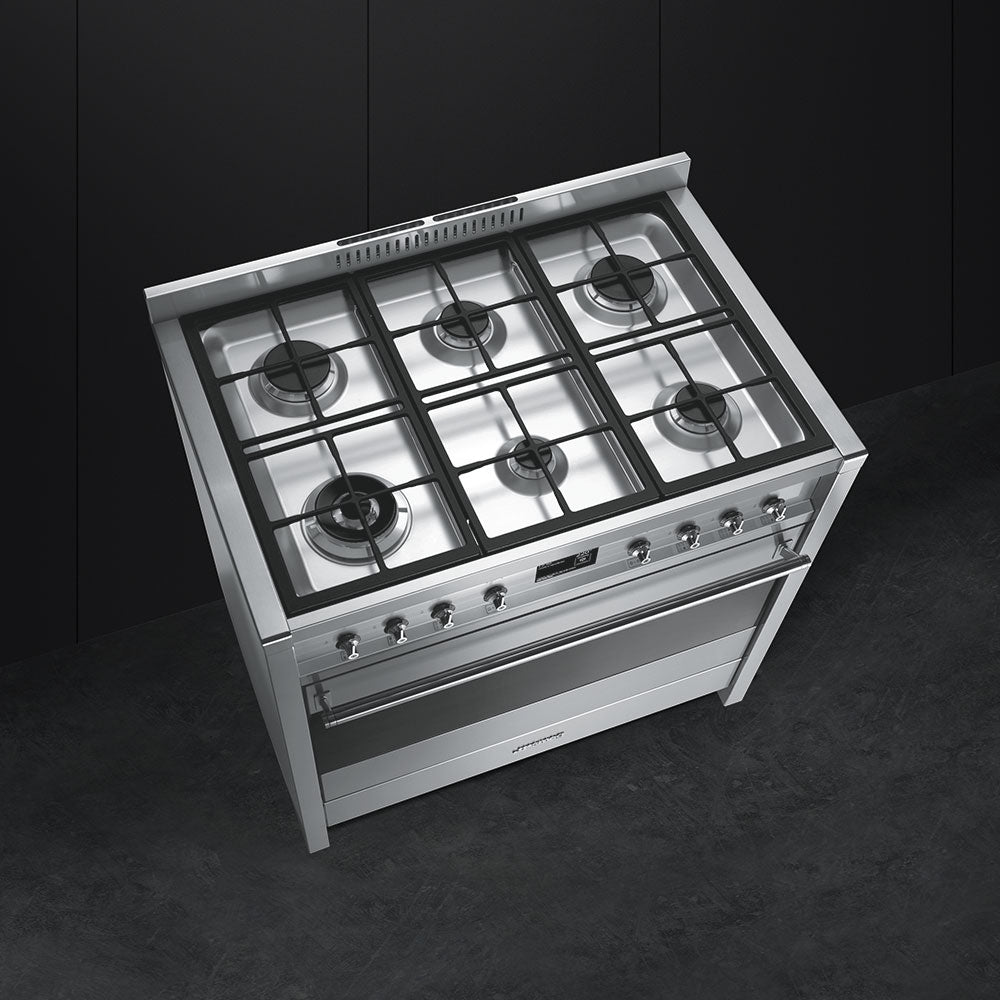

CAST IRON GRIDS

The kitchen hob features solid and sturdy cast iron grids resistant to high temperatures that give a highly professional appearance, as well as guaranteeing excellent performance, unalterable over time.



PROFESSIONAL DESIGN

Modern in its design with a clean and elegant style, ergonomic controls and sturdy handles, Opera is a truly aspiring range of cookers for serious cooks. Crafted with attention to detail and the use of 18/10 stainless steel to ensure excellent, long-lasting results.

TYPE

Product Family:Cooker
Cooker size:90x60 cm
Hob energy type:Gas
N. of ovens:1
Hob type:Gas
Type of main oven:Thermo-ventilated
Cleaning system:Catalytic
EAN code:8017709229160

AESTHETICS

Heavy duty cast iron pan stands: for maximum stability and strength. Fingerprint proof stainless steel: Fingerprint proof stainless steel keeps stainless steel looking as good as new.
Colour:Stainless steel
Finishing:Fingerproof
Aesthetic:Classica
Design:Professional
Serie:Opera
Material:Stainless steel
Door:With 2 horizontal strips
Command panel finish:Finger friendly stainless steel
Hob colour:Stainless steel
Handle:Smeg Classic
Controls colour:Stainless steel
Upstand:Yes
Display:TFT
Type of pan stands:Cast Iron
Glass type:Eclipse
Handle Colour:Brushed stainless steel
Control knobs:Smeg Classic
No. of controls:8
Storage compartment:Drawer

PROGRAMME / FUNCTIONS

Customizable recipes:10
Automatic programs:50
Traditional cooking functions
Static: Traditional cooking suitable for the preparation of one dish at a time.
The fan is not active and the heat comes from below and from above at the same time.
Static cooking is slower and more delicate, ideal in order to get well cooked and dry dishes even inside.
Ideal for cooking all types of roasts, fatty meats, bread, filled cakes.Static

Fan assisted: Intense and homogeneous traditional cooking, also suitable for complex recipes.
The fan is active and the heat comes from below and from above at the same time.
Ventilated cooking ensures a faster and more homogeneous result, leaving fragrant foods outside and moister inside.
Ideal for baked pasta, biscuits, roasts and cobblers.Fan assisted

Circulaire: it is the perfect function for cooking all types of dishes in a more delicate way.
The heat comes from the back of the oven and is distributed quickly and evenly
The fan is active. It is also ideal for cooking on multiple levels without mixing smells and flavors.Circulaire

Turbo: the heat comes from 3 directions: above, below and from the back of the oven
The fan is active. It allows quick cooking, even on several shelves without mixing the aromas.
Ideal for large volumes or foods that require intense cooking.Turbo

ECO: low energy consumption cooking: this function is particularly suitable for cooking on a single shelf with low energy consumption.
It is recommended for all types of food except those that can generate a lot of moisture (for example vegetables).
To achieve maximum energy savings and reduce time, it is recommended to put the food in the oven without preheating the cooking compartmentEco

Half grill: For rapid cooking and browning of foods. Best results can be obtained by using the top shelf for small items, the lower shelves for larger ones, such as chops or sausages. For half grill heat is generated only at the centre of the element, so is ideal for smaller quantities.Small grill

Grill: Very intense heat coming only from above from a double heating element.
The fan is not active. Provides excellent grilling and gratinating results.
Used at the end of cooking, it gives a uniform browning to dishes.Large grill

Fan grill: very intense heat coming only from above from a double heating element
The fan is active. It allows the optimal grilling of thickest meats.
Ideal for large cuts of meat.Fan grill (large)

Base: the heat comes only from the bottom of the cavity.
The fan is not active. Ideal for sweet and savory pies, cobblers and pizzas.
Designed to complete cooking and make food more crunchy
This symbol in gas ovens indicates the gas burner.Base

Fan assisted base: the mix of fan and lower heating element alone allows to finish cooking foods already cooked on the surface but not internally more quickly.
This system is recommended to finish cooking foods that are already well cooked on the surface, but not internally, which therefore require a moderate higher heat.
Ideal for any type of food.Fan assisted bottom
Cleaning functions
Catalytic

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.Vapor clean
Other functions
Defrost by time: Manual defrost function.
At the end of the set duration, the function stops.Defrost by time

Defrost by weight: Automatic defrost function.
You choose the type of food to defrost from the available categories (MEAT - FISH - BREAD - DESSERTS)
After entering the weight of the food, the oven automatically defines the time required for proper defrosting.Defrost by weight

Plate rack warming: function for heating or keeping dishes warm. Place the baking tray on the lowest shelf and stack the dishes to be heated.Plate rack/warmer

Air at 40°C provides the perfect environment for
proving yeast type dough mixes.
Simply select the function and place dough in the
cavity for allottedProving

SABBATH: function that allows to cook food respecting Judaism's day of rest provisions.Sabbath
OPTIONS MAIN OVEN

Timer:Yes
End of cooking acoustic alarm:Yes
Minimum Temperature:50 °C
Maximum temperature:280 °C

HOB TECHNICAL FEATURES

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones:6
1st zone position:Front left
2nd zone position:Rear left
3rd zone position:Front centre
4th zone position:Rear centre
5th zone position:Front right
6th zone position:Rear right
1st zone type:Gas - 2UR (dual)
2nd zone type:Gas - Rapid
3rd zone type:Gas - AUX
4th zone type:Gas - Semi Rapid
5th zone type:Gas - Semi Rapid
6th zone type:Gas - Rapid
1st zone power:4.20 kW
2nd zone power:3.00 kW
3rd zone power:1.00 kW
4th zone power:1.80 kW
5th zone power:1.80 kW
6th zone power:3.00 kW
Type of gas burners:Standard
Burner caps:Matt black enamelled
Automatic electronic ignition:Yes
Gas safety valves:Yes

MAIN OVEN TECHNICAL FEATURES

Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Ever Clean Enamel: Ever Clean enamel is applied electrostatically, corner to corner and edge to edge to prevent cracking or cracks over time.
It is a particular pyrolytic enamel, resistant to acids which, in addition to being pleasantly bright, promotes greater cleaning of the oven walls, thanks to its lower porosity.
It is baked at over 850 ° C and slowly polymerized at a scientifically determined rate to ensure uniform depth and strength
Ever Clean enamel creates an impeccable finish both on the inside of the oven and on the trays, making the surfaces of the oven incredibly easy to maintain over time as it reduces the adhesion of fat during cooking Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity:115 l
Gross volume, 1st cavity:129 l
Cavity material:Ever Clean enamel

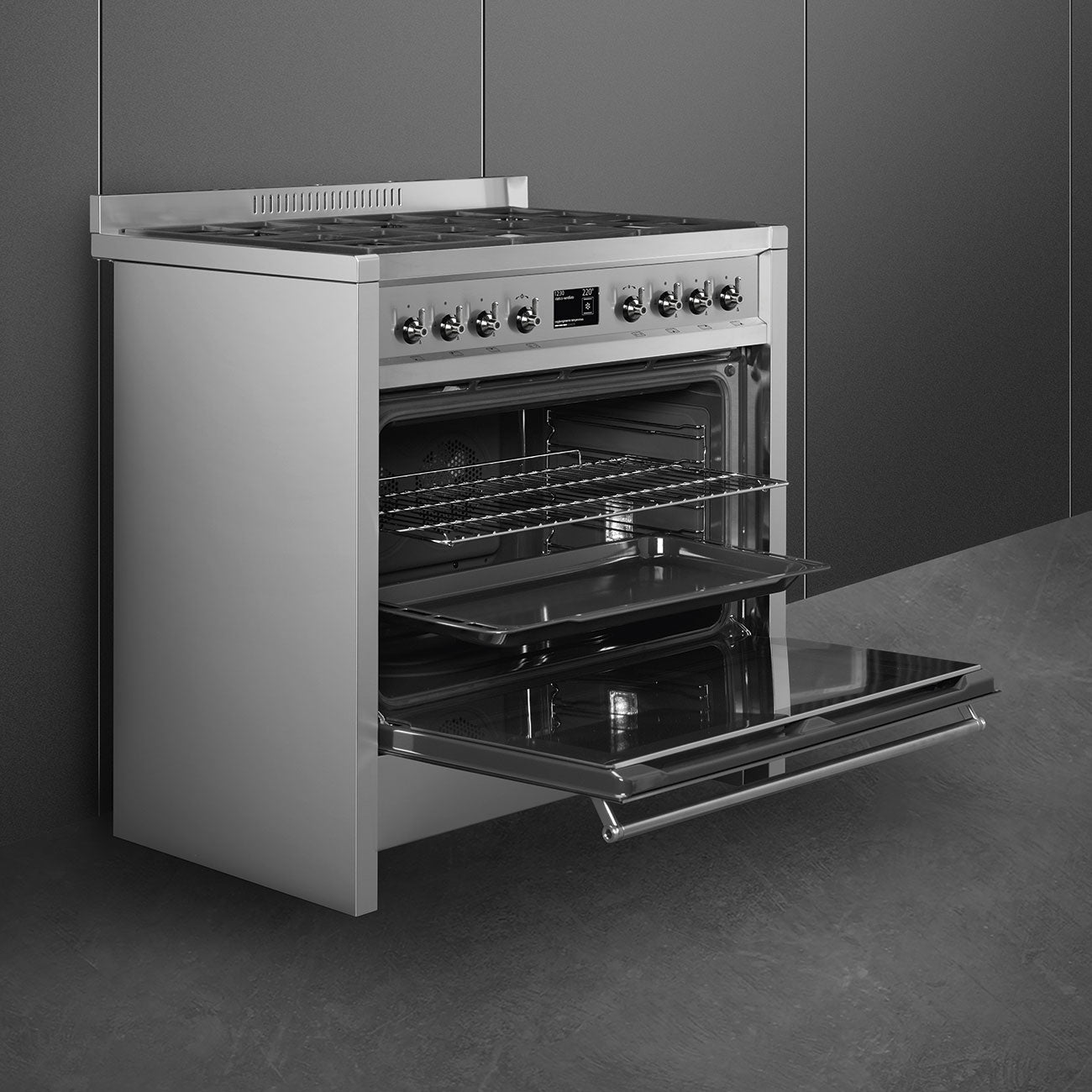

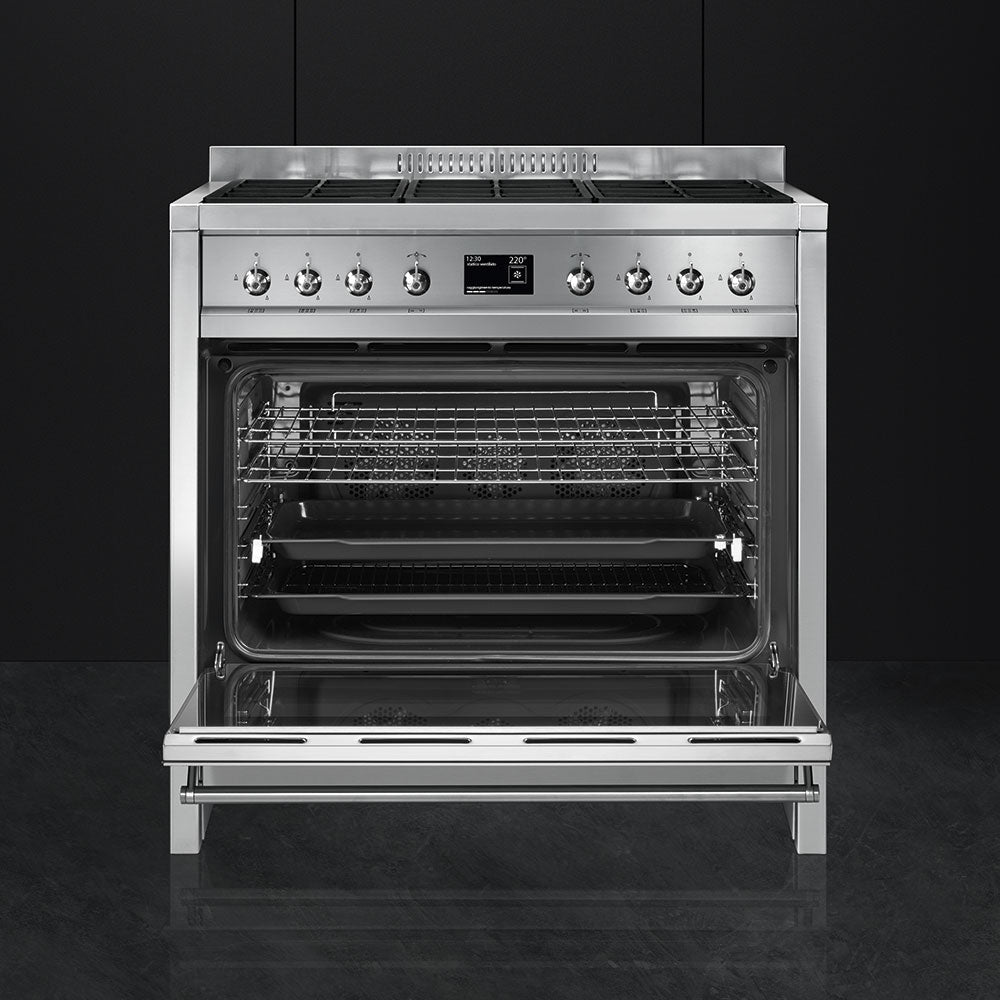

No. of shelves:5
Type of shelves:Metal racks
No. of lights:2
Light type:Halogen
Light Power:40 W
Fan number:3
Cooking time setting:Start and Stop
Door opening:Flap down
Light when oven door is open:Yes

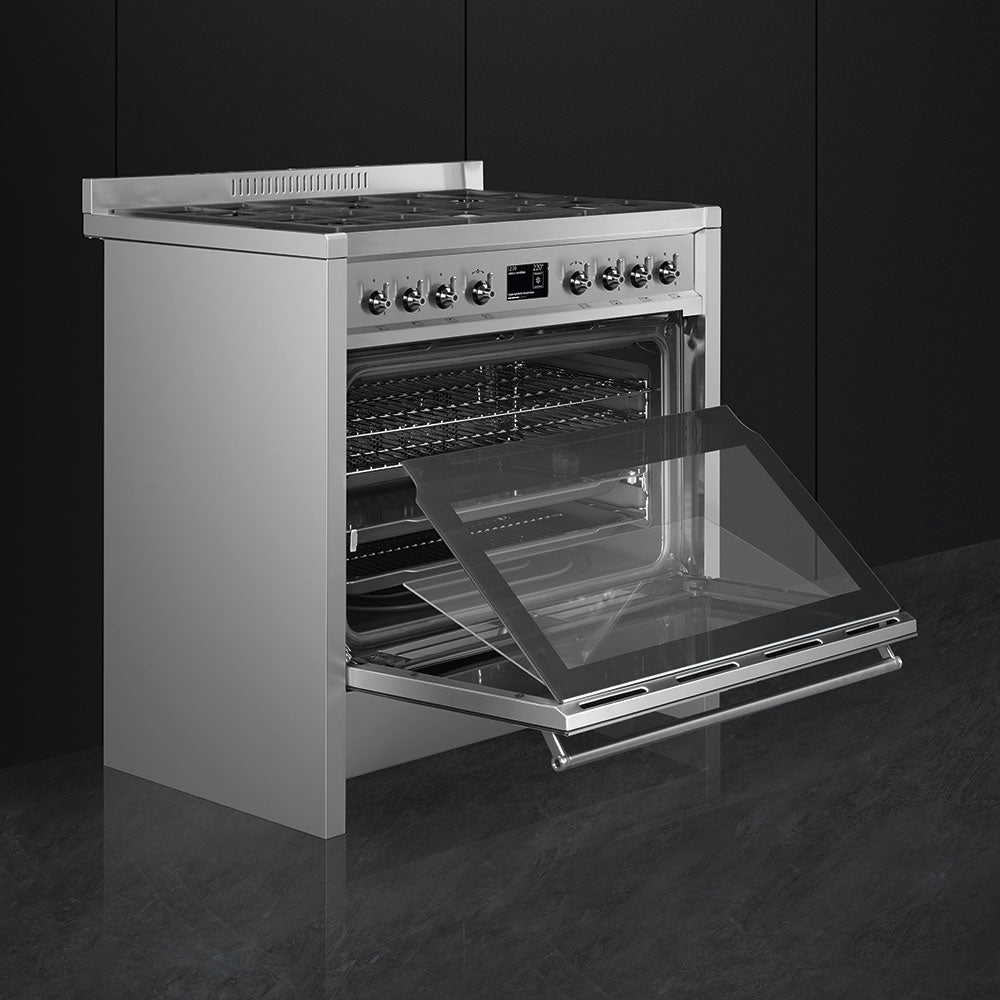

Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
Total no. of door glasses:3
No.of thermo-reflective door glasses:2
Safety Thermostat:Yes
Cooling system:Tangential
Heating suspended when door is opened:Yes
Grill type:Electric
Grill elememt:1700 W
Large grill - Power:2900 W
Lower heating element power:1700 W
Upper heating element - Power:1200 W
Circular heating element - Power:1500 W
Soft Close system:Yes
Temperature control:Electronic

PERFORMANCE / ENERGY LABEL

???Energy_Label_Ap-Right-LightGreen_72dpi???
Energy efficiency class:A+
Energy consumption in forced air convection:3.02 MJ
Energy consumption per cycle in fan-forced convection:0.84 KWh
Energy consumption in conventional mode:4.28 MJ
Energy consumption per cycle in conventional mode:1.19 KWh

ELECTRICAL CONNECTION

Electrical connection rating:3200 W
Voltage:220-240 V
Frequency:50/60 Hz
Power supply cable length:120 cm

GAS CONNECTION

Gas connection rating (W):14500 W
Gas Type:G20 Natural gas

LOGISTIC INFORMATION

Width (mm):900 mm
Product Height (mm):900 mm
Depth (mm):600 mm
Gross weight (kg):107.600 kg
Net weight (kg):93.400 kg
